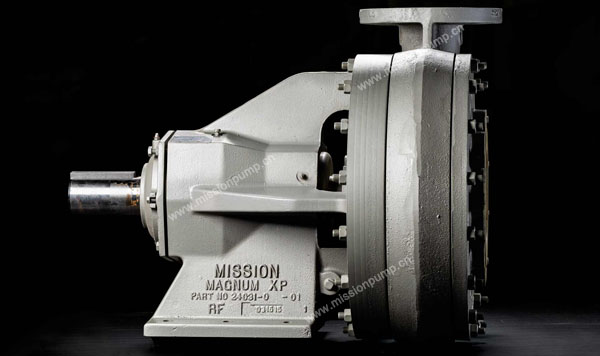

Mission Magnum XP Pumps
12x10x23
14x12x22
The Magnum XP is ideally suited for pumping high volumes of heavy slurries that are abrasive, corrosive, and difficult to pump. The compact overall dimensions make it an excellent choice for high-volume mobile and stationary applications for which a small footprint is critical. Designed for continuous operation with minimal maintenance, this model is engineered to provide maximum seal life with low stuffing box pressure and an extra-heavy shaft design.
A unique casing flow divider on the 12x10x23 and 14x12x22 cuts the radial load in half, doubling bearing life. The heavy-duty bearings are permanently lubricated to minimize maintenance.
The Mangum XP is capable of handling flow rates up to 7,500 gal/min and differential head pressures up to 420 ft.
Download: Mission Pumps Catalog (pdf files)
The high chrome material spare parts are available(HRC>58).
Mission magnum xp pump spare parts list :
| Item | Part No. | Process No. | Description | QTY. of one pump |
|---|---|---|---|---|
| 1 | 662001001 | Casing, 12x10x23 | 1 | |
| 1 | 651120206 | Casing, 14x12x22 | 1 | |
| 2 | 648402014 | Nut, Casing | 32 | |
| 3 | 658403308 | Stud, Casing (14×12 and 12×10) | 32 | |
| 4 | 658410501 | Gasket, Casing (14x12x22) | 2 | |
| 4 | 661010001 | Gasket, Casing (12x10x23) | 2 | |
| 5 | 662014003 | Cover, Front (12x10x23) | 1 | |
| 5 | 654310309 | Cover, Front (14x12x22) | 1 | |
| 6 | 662005003 | Impeller, 14×12 Clockwise Rot. 22″ | 1 | |
| 6 | 662005002 | Impeller, 12×10 Clockwise Rot. 23″ | 1 | |
| 7 | 658408109 | Seal, Impeller Nose | 1 | |
| 8 | 658405006 | Key, Impeller | 1 | |
| 9 | 662014054 | Nose, Impeller (2 Flat Ion Nitride) | 1 | |
| 9 | 652309601 | Nose, Impeller (Hex Design) | 1 | |
| 9 | 652309600 | Nose, Impeller (Two Flat Design) | 1 | |
| 10 | 658411400 | Screw, Set | 1 | |
| 11 | 658414255 | Jam Nut | 1 | |
| 12 | 658408059 | Seal, Impeller | 1 | |
| 13 | 658416102 | Mechanical Seal (Crane Type) | 1 | |
| 14 | 653322305 | Stuffing Box, Mech. Seal (14×12) | 1 | |
| 14 | 662014002 | Stuffing Box, Mech. Seal (12×10) | 1 | |
| 15 | 648401016 | Bolt, Stuffing Box | 1 | |
| 16 | 656422201 | Sleeve, Shaft | 1 | |
| 17 | 658408505 | Seal, Sleeve | 1 | |
| 18 | 654311604 | Slinger | 1 | |
| 19 | 658408554 | Seal, Slinger | 1 | |
| 20 | 658413604 | Oil Seal, Inboard Bearing | 1 | |
| 21 | 658413000 | Bearing, Inboard | 1 | |
| 22 | 654312008 | Frame 14×12 | 1 | |
| 22 | 662014001 | Frame 12×10 | 1 | |
| 23 | 654313006 | Housing, Bearing | 1 | |
| 24 | 658408901 | Seal, Bearing Housing | 1 | |
| 25 | 661009001 | Bearing, Outboard (12×10 and 8×6) | 2 | |
| 25 | 658413307 | Bearing, Outboard (14×12) | 1 | |
| 26 | 658408802 | Seal, Bearing Cover | 1 | |
| 27 | 658407002 | Lock Washer | 1 | |
| 28 | 658406509 | Lock Nut, Bearing | 1 | |
| 29 | 658413638 | Oil Seal, Bearng Cover | 2 | |
| 30 | 601482417 | Drive Screws | 6 | |
| 31 | 601501505 | Nameplate | 1 | |
| 32 | 656420007 | Shaft | 1 | |
| 33 | 658405055 | Key, Coupling | 1 | |
| 34 | 654314004 | Cover, Bearing | 1 | |
| 35 | 648401081 | Bolts, Bearing Cover | 2 | |
| 36 | 648402030 | Washer, Bearing Cover | 2 | |
| 37 | 626402702 | Nuts, Bearing Housing | 2 | |
| 38 | 648401057 | Bolt, Bearing Housing | 4 | |
| 39 | 648402030 | Washer, Flat | 2 | |
| 40 | 601408289 | Bolt, Packing Gland | 2 | |
| 41 | 654315100 | Gland, Packing Half | 2 | |
| 42 | 658409503 | Packing Set | 1 | |
| 43 | 658404207 | Screw, Cap | 2 | |
| 44 | 601474695 | Plug, Grease | 1 | |
| 45 | 601473689 | Breather | 1 | |
| 46 | 661010020 | Plug, Fitting | 1 | |
| 47 | 654310507 | Wearplate, Split Box | 1 | |
| 48 | 658409552 | Packing Set | 1 | |
| 49 | 658413935 | Nut and Washer Assembly | 2 | |
| 50 | 1/2-13×4 Ig Gr. 5 | Bolt, Split-Box | 2 | |
| 51 | 654317007 | Stuffing Box, Split | 2 | |
| 52 | 658418207 | Latern Ring Half | 2 | |
| 53 | 601499403 | Fitting, Grease | 1 | |
| 54 | 658404405 | Screw, Cap | 2 | |
| 55 | 658420203 | Tool, Impeller Nose and Nut | 1 | |
| 56 | 658420252 | Tool, Impeller Removal | 1 | |
| 57 | 658420302 | Tool, Shaft Holder | 1 | |
| 58 | 658409859 | Plug, Pipe | 2 | |
| 59 | 658410006 | Plug, Pipe | 1 | |
| 60 | 603445727 | Tag, Mechanical Seal | 1 |
