Mission Sandmaster Pumps

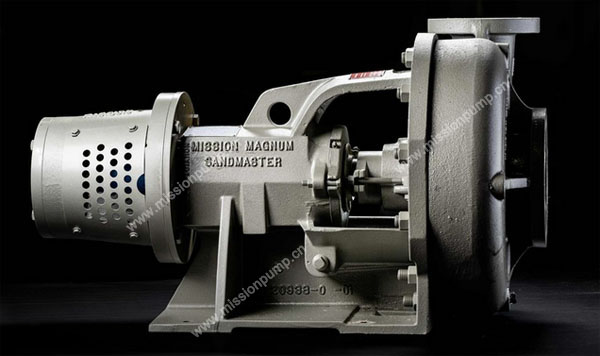

The MISSION Sandmaster line of centrifugal pumps includes all the abrasive-fluid handling features of the MISSION Magnum pump line in a more compact design and they can be adapted for hydraulic motor drive. Compared to the Magnum, the frame and shaft have been shortened to 4 in. to reduce the length of the pump.
As an extension of the Magnum pump line, these pumps offer our quality manufacturing and distribution network to increase solutions to pumping requirements in the oilfield industry from a reliable, industry-specific partner.
Download: Mission Pumps Catalog (pdf files)
We can supply NOV Mission sandmaster centrifugal pumps model list
3x2x13 ,4x3x13 ,5x4x14 ,6x5x11 ,6x5x14 ,8x6x11 , 8x6x14 , 10x8x14.
Mission sandmaster pump spare parts list :
| Item | QTY. | Part No. | Process No. | Description |
|---|---|---|---|---|
| 1* | 1 | See below | Casing | |
| 1A | 1 | 10399-46-1 | 648403012 | Gasket,casing |
| 1B | 12 | 3932-61 | 648402014 | Nut,casing |
| 1C | 12 | 3862-76 | 648401115 | Stud,casing |
| 1D | 1 | 8505-4-1 | 86485503 | Plug,Casing Drain |
| 1E | 1 | 8505-4-1 | 646400507 | Plug,flush line |
| 2* | 1 | See below | Impeller | |
| 2A | 1 | 19110-72 | 648405082 | Seal,impeller |
| 2B | 1 | 7300239 | Washer,impeller | |
| 2C | 1 | 7415648 | Bolt,impeler lock | |
| 3*# | 1 | 22223-01-30 | 641116157 | Stuffing box,mech.seal |
| 3*& | 1 | 20614-01-30 | 643365042 | Stuffing box,packed |
| 3A | 2 | 3861-117 | 648401016 | Bolt,stuffing box |
| 3B& | 1 | 19368-01 | 601499403 | Grease fitting |
| 4 | 1 | 20622A | 641103338 | Gland assy,packing |
| 5A# | 1 | 22451-1 | 648414308 | Seal,mechanical |
| 5A~ | 3 | 25014-04M-B | 661007005 | Packing, Shaft - M.S. Backup |
| 6 | 2 | B3701A | 601102494 | Bolt assy,gland |
| 7 | 1 | 20939-02-33 | 646490557 | Shaft |
| 7A | 1 | 20943-04A | 641103437 | Sleeve,shaft |
| 7B | 1 | 4371-5-21 | 601212392 | Key,shaft |
| 7C | 1 | 23444-01-72 | 648415156 | Seal,shaft sleeve |
| 8 | 1 | 22210-1A | 641116108 | Deflector assembly |
| 9 | 1 | 20938-02-01 | 644302499 | Frame,grease lubricated |
| 9C | 1 | 8505-05 | 601474737 | Plug, Frame Drain |
| 9D | 1 | 8267-01 | 601473689 | Breather |
| 9G | 3 | 2538-1H | Bolt,casing jack | |
| 10A | 1 | 20626 | 641103361 | Cover,inboard bearing |
| 10B | 1 | 20625 | 648408706 | Gasket,I.B.Brg.Cover |
| 10C | 1 | 20619-01 | 648408300 | Oil seal, I.B.Brg.Cover |
| 10D | 2 | 3861-1 | 601407505 | Bolt, I.B.Brg.Cover |
| 10E | 2 | 3932-2 | 601408560 | Nut, I.B.Brg.Cover |
| 10F | 1 | 20620-01 | 648408409 | Exclusion Seal,I.B. Brg.Cvr. |
| 10H | 1 | 19368-01 | 648411908 | Grease fitting |
| 11 | 1 | 20615-1 | 648408102 | Bearing,inboard |
| 12 | 1 | 20624-01-01 | 644308504 | Housing,O.B.bearing |
| 12A | 1 | 7496-253 | 648402295 | Seal, O.B.Brg.housing |
| 12B | 4 | 3861-138 | 648401057 | Bolts, O.B.Brg.housing |
| 12C | 2 | 3932-62 | 658404702 | Nut, O.B.Brg.housing jam |
| 13 | 1 | 20617A | 641103296 | Cover,O.B.Bearing |
| 13A | 1 | 19368-01 | 661010020 | Grease zerk, O.B.Brg.Cover |
| 13B | 1 | 7496-26 | 72200017 | O-ring, O.B.Brg.Cover |
| 13C | 1 | 20619-02 | 648408359 | Oil seal, O.B.Brg.Cover |
| 13D | 2 | 3861-139 | 648401081 | Bolt, O.B.Brg.Cover |
| 14 | 2 | 20616-1 | 648408201 S | Bearing, O.B. |
| 14A | 1 | 6124-4 | 648402105 | Lockwasher,O.B.Bearing |
| 14B | 1 | 6123-4 | 648402055 | Locknut, O.B.Bearing |
Casing |
||||
| 1* | 1 | 19203-01-30A | 641101753 | Casing,3x2x13 |
| 1* | 1 | 19205-01-30A | 641101902 | Casing,4x3x13 |
| 1* | 1 | 19222-01-30A | 641102058 | Casing,5x4x14 |
| 1* | 1 | 19122-01-30A | 641101456 | Casing,6x5x11 |
| 1* | 1 | 19123-01-30A | 641101605 | Casing, 6x5x14 |
| 1* | 1 | 19763-01-30A | 641102157 | Casing, 8x6x11 |
| 1* | 1 | 19117-01-30A | 641101308 | Casing,8x6x14 |
| 1* | 1 | 20937-01-30A | 641102322 | Casing,10x8x14 |
Impellers |
||||
| 2* | 1 | 19204-XX-30 | 641215603 | Impeller,3x2x13 |
| 2* | 1 | 19206-XX-30 | 641217005 | Impeller,4x3x13 |
| 2* | 1 | 19224-XX-30 | 641217831 | Impeller,5x4x14 |
| 2* | 1 | 19121-XX-30 | 641211602 | Impeller,6x5x11 |
| 2* | 1 | 19121-XX-30 | 641212105 | Impeller, 6x5x14 |
| 2* | 1 | 19121-XX-30 | 641211602 | Impeller, 8x6x11 |
| 2* | 1 | 19116-XX-30 | 641209903 | Impeller,8x6x14 |
| 2* | 1 | 21867-XX-30 | 641221007 | Impeller,10x8x14 |
