Mission Pump

We are a professional Nov Mission pump supplier of China, foucing on manufacturing & supplying high quality(NOV Standard material and High Chrome material) pumps and service for oil and gas drilling, mining, and fluid pumping industry . Pump casing (housing) and Impeller ,stuffing box are the hard iron material ( High chrome material available,Hardness HRC>58).
Our pumps are specifically designed to meet the needs and challenges of some of the most demanding industries, including horizontal directional drilling and well stimulation fracking. The pump includes 3x2x13, 4x3x13, 5x4x14, 6x5x11,6x5x14, 8x6x11,8x6x14, 10x8x14, 12x10x23, 14x12x22 . Normally interchangeable with Mission, Halco,MCM & Forum .

Mission Magnum Centrifugal Pumps

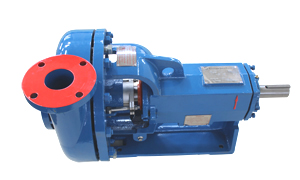

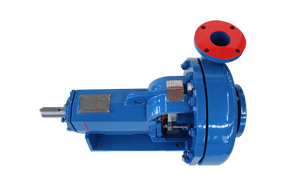

Mission Magnum I Pumps (SM/250 Series)

MISSION Magnum pumps are proven as reliable, heavy-duty, low-cost slurry pumps. The 3x2x13 through 10x8x14 pumps all feature the same power end, which ensures production and reduced spare-part inventory requirements. Standard models are equipped with a heavy-duty 2 1/2-in (2.5 inch). shaft protected by a stainless-steel shaft sleeve, double-row outboard bearings, and inboard roller bearings. They are rated for continuous service in applications up to 200 hp and are available in hard iron, stainless steel, aluminum bronze, and Magnachrome with capacities up to 2,600 gal/min and pressure head up to 550 ft. Read More...

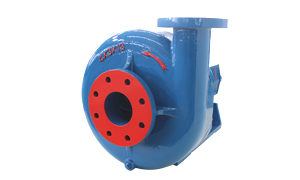

Mission Sandmaster Pumps (SSA Series)

The MISSION Sandmaster line of centrifugal pumps includes all the abrasive-fluid handling features of the MISSION Magnum pump line in a more compact design and they can be adapted for hydraulic motor drive. Compared to the Magnum, the frame and shaft have been shortened to 4 in. to reduce the length of the pump.
We are offering solutions to high-flow, low-head applications in the oilfield service industry.As an extension of the Magnum pump line, these pumps offer our quality manufacturing and distribution network to increase solutions to pumping requirements in the oilfield industry from a reliable, industry-specific partner. Read More...

Mission Magnum XP Pumps (SXP Series)

The Magnum XP is ideally suited for pumping high volumes of heavy slurries that are abrasive, corrosive, and difficult to pump. The compact overall dimensions make it an excellent choice for high-volume mobile and stationary applications for which a small footprint is critical. Designed for continuous operation with minimal maintenance, this model is engineered to provide maximum seal life with low stuffing box pressure and an extra-heavy shaft design. A unique casing flow divider on the 12x10x23 and 14x12x22 cuts the radial load in half, doubling bearing life. The heavy-duty bearings are permanently lubricated to minimize maintenance. The Mangum XP is capable of handling flow rates up to 7,500 gal/min and differential head pressures up to 420 ft. Read More...

Welcome to Mission Pump

Mission Pump

Watch our factory

Mission Magnum Centrifugal Pumps

Mission Magnum I Pumps (SM/250 Series)

Mission Sandmaster Pumps (SSA Series)

Mission Magnum XP Pumps (SXP Series)
